BART Makes Some Progress on Noise

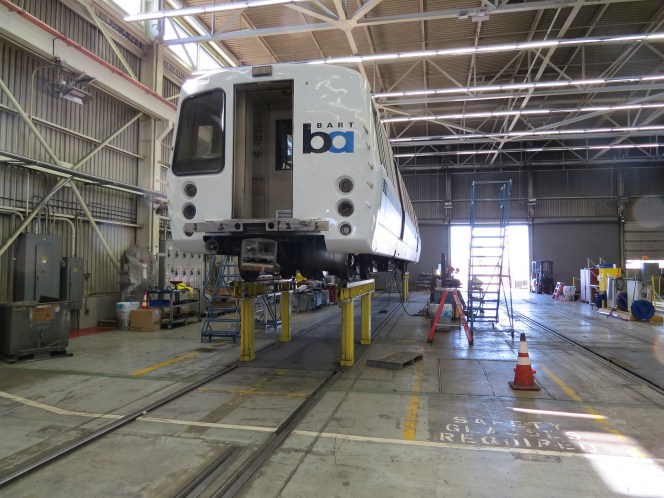

BART’s Hayward shop. Photo: Streetsblog.

BART has been busy reshaping its wheels as part of a strategy to reduce the system's notorious howl. Initial results show it's working. "The new, reduced-contact wheel profile has shown as much as a 15 dB decrease in interior noise on the current fleet" wrote the transit operator in a release put out today. "By slightly tapering the wheel profile using the latest simulated modeling techniques, we hoped to reduce metal-on-metal contact and its consequences."

15 dB may not seem like much, but the decibel scale is logarithmic—like the Richter Scale—meaning just a few points of numerical difference represents a huge improvement in noise reduction. BART provided this visual representation of the noise levels of the new and old wheel profile:

noiseprofile
This chart gives a sense of the relative noise produced by the old BART wheels (seen at bottom) and the new, seen above. Image: BART
false

As Streetsblog readers will recall, BART's new trains--the first ones should show up in service around Thanksgiving--have a tapered or conical cross-section to its wheel, which is standard on railroads throughout the world. However, when BART was designed back in the 1970s, its engineers opted for a flat wheel profile. The idea was to reduce the amount of side-to-side jostling that can occur on a train at higher speeds. However, it resulted in excessive and uneven rail wear, notably on curves. The flat, 1970s-designed wheels, over time, grind an oscillation pattern into the rails--known as corrugation--and, in effect, turn them into miles-long, hideous-sounding violin strings. That's why legacy subway systems, such as New York's, are loud, but don't produce BART's uniquely deafening howl.

BARTs new cars have a tapered profile more like standard train wheels. Image: A still from BART's promotional video
BARTs new cars have a tapered profile more like standard train wheels. They're also in the process of grinding wheels on the current fleet to achieve this standard profile. Image: A still from a BART promotional video
false

Of course, don't throw out your ear plugs yet. "Currently, 13 percent of our legacy fleet has been outfitted with the new wheel profile," wrote BART officials, "and we estimate 90 percent will be converted by the end of 2019."

As the new wheels are phased in, BART will have to grind the rails smooth to remove that "violin string" corrugation pattern. The agency says the rail grinding will "... take place during maintenance hours overnight over approximately five years. There will be three phases, with six grinding passes per phase over the entire 235-mile system. That’s roughly 4,000 miles of rail grinding between now and 2022, about the same distance as a drive from San Francisco to Chicago and back."

By then it might actually be possible to have a conversation on BART without yelling.
